R300 Replacement Capacitor

Series Features

3 phase capacitor available in a range from 208-999V, the R300 series is a simple solution for PFC needs in low voltage systems. They are designed to work in harmonic filters, and are self-healing with an all-phase overpressure tear-off fuse.

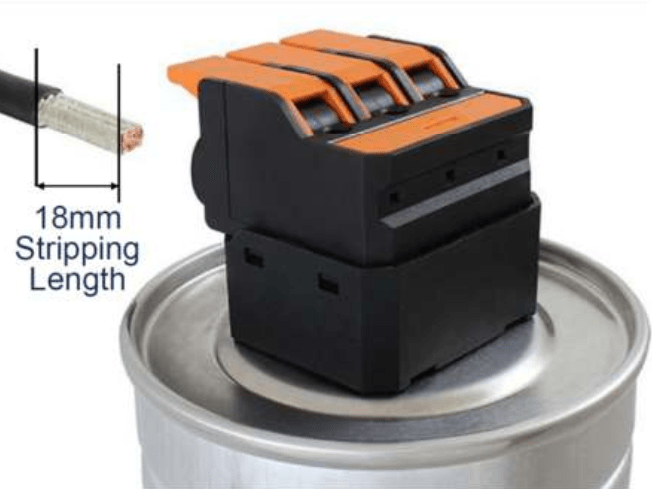

The spring connection terminal used ensures wires stay secure with optimal contact and force while saving assembly time, all in a touch-safe design.

R300 Drawing– ESTAspring

Series Comparison: The R300 vs The R333

The R300 is what we refer to as a ‘replacement’ capacitor, also known as the PhMKP series, and there are no accessories included. The R333 is a ‘loose’ capacitor, which includes 915mm/3 feet of tin plated wire for each phase along with the capacitor itself. Safety warning labels are included as well.

Both series are complete with removeable discharge resistors.

Manufactured by Vishay Electronic GmbH, Germany (ESTA Division)

Capacitor Specifications
Voltage Ratings208 – 999 V
Maximum kVAr per 3 phase casing (60 Hz)13.6 kVAr @ 208V (rated 20.4 kVAr @ 300V)
25.0 kVAr @ 480V (rated 30.0 kVAr @ 525V)
25.0 kVAr @ 600V (rated 33.0 kVAr @ 690V)
16.7 kVAr @ 600V (rated 45.94 kVAr @ 999V)
SpecificationsUL and cUL,
CSA CAN3-C155-M84 (1986),
CSA C22.2 No. 190-M1985,
IEC Publication 831-1, 831-2,
VDE 560-47, 560-47,
EN60831-1, EN60831-2
InsulationPhMKP Series: non-PCB, natural oil impregnant, flash/ignition points 285/315°C.
PhMKP(g) Series: non-PCB, dry/gas agent, available on request (special order).

Both series are biodegradable and non-toxic.
ElectrodesVacuum-metallized on one side of the plastic film.
TemperatureAmbient: -40°C to +45°C
Storage: -40°C to +60°C
Inrush CurrentMaximum 300 times the rated current.
Loading Capacity1.10 times the rated voltage.
1.30 times the rated current.
1.50 times the rated output.
Frequency Ratings50 or 60 Hz
Capacitor CasingSeamless aluminum
Losses≤ 0.25 Watts per kVAr
Discharge Resistors50V or less in one minute after disconnection of supply voltage.
DielectricPolypropylene film
Safety FeaturesTouch-safe terminal.
Removeable discharge resistor.
Self-healing technology.
Grounding/mounting stud at base of capacitor.
Over pressure tear-off fuse (pressure sensitive circuit interrupter) internally fused up to 10kAIc.
Special ApplicationsDesigned for use in harmonic filters.

Also Available: R333 Replacement Capacitor, R500 Packaged Capacitor
